1.5 Gallon 120 PSI Plug-N-Play Air Source Kit

1.5 Gallon 120 PSI Plug-N-Play Air Source Kit

20004
Regular price
Temporarily Out of Stock
Sale price
£255.00
£306.00 inc vat
Quantity must be 1 or more

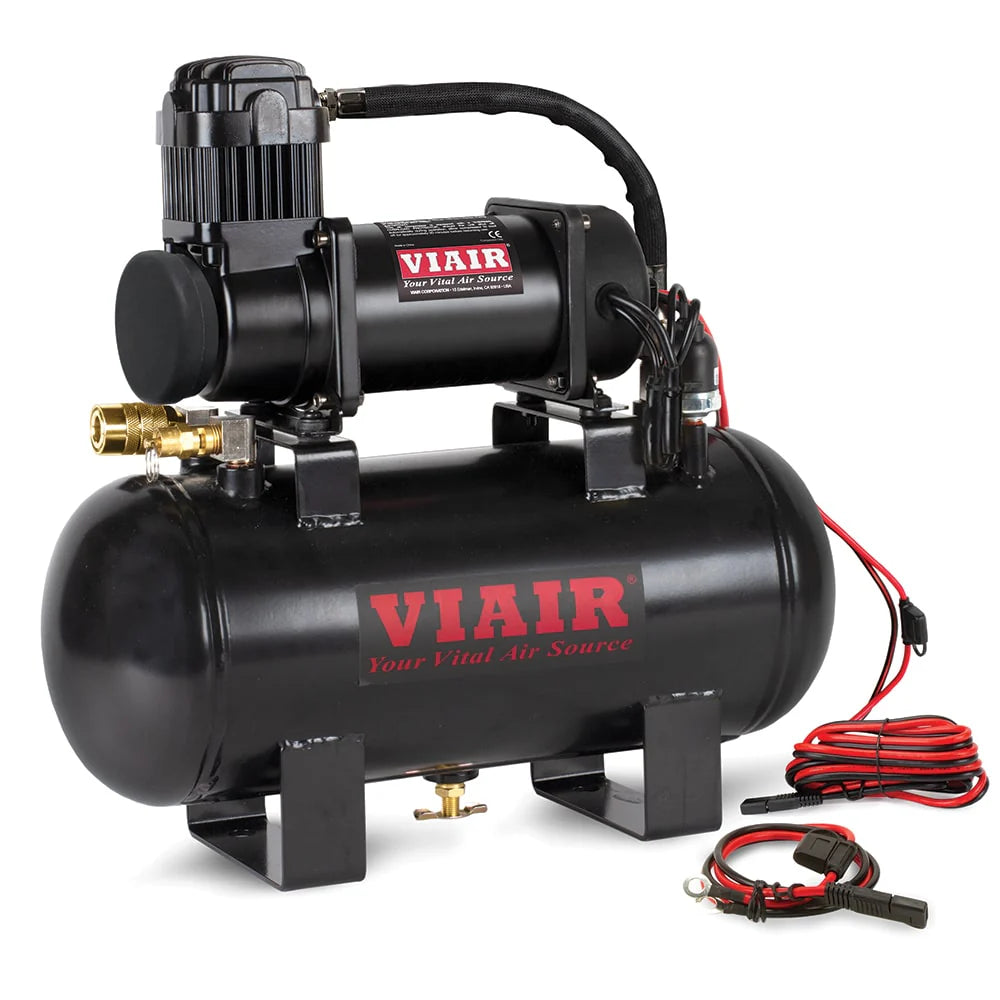

Our 120 PSI On Demand Air System is a Plug N Play solution for any enthusiast who enjoys fast tyre inflation and performs multiple pneumatic tasks on the go. Features a 1.5 Gallon tank, pre-wired 120 PSI pressure switch, 1/4″ NPT brass drain cock, 1/4″ NPT ASME Coded and certified safety valve and 1/4″ quick connect coupler pre-installed. The Kit has an onboard ON/OFF switch and can be easily installed in the vehicle using the SAE terminal ring attachments and mounting hardware included.

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 25% @ 100 PSI
  • Max. Working Pressure: 120 PSI
  • Max. Amp Draw: 30-Amps
  • Ingress Protection Rating: IP54
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 15.2″L x 5.9″W x 12.8″H
  • Net Weight: 15.65 lbs.

FEATURES:

  • 1.5-Gallon Air Tank
  • 2-Pin SAE Connector Attachment with Terminal Rings
  • 40-Amp Inline Fuse Holder
  • Mounting Hardware



12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

PSI CFM A BAR LPM A
0 2.37 15 0 67.0 15
10 2.06 18 1.0 55.3 19
20 1.88 20 2.0 51.0 22
30 1.78 22 3.0 45.0 24
40 1.66 23 4.0 40.7 25
50 1.53 24 5.0 38.0 26
60 1.44 25 6.0 35.3 27
70 1.35 26 7.0 33.0 27
80 1.28 26 8.0 30.7 27
90 1.22 27
100 1.17 27
110 1.12 27
120 1.06

27



TANK FILL RATE

1.5 GALLON TANK FILL RATE
0 to 105 PSI 59 sec. (±05 Sec.)
85 to 105 PSI 13 sec. (± 03 Sec.)
0 to 120 PSI 1 min. 12 sec. (±05 Sec.)
90 to 120 PSI 19 sec. (± 03 Sec.)



TYRE FILL RATE

31″X10.5″ FILL RATE
0 to 30 PSI 1 min. 57 sec. (±05 Sec.)
15 to 30 PSI 1 min. 17 sec. (± 05 Sec.)
33″X12.5″ FILL RATE
0 to 30 PSI 3 min. 37 sec. (±10 Sec.)
15 to 30 PSI 2 min. 19 sec. (± 05 Sec.)
