VIAIR’s 450P Automatic Portable Compressor makes filling your car, truck, SUV, or off-road vehicle quick and easy. With 1 hour of runtime and automatic shutoff, move from tire to tyre and check pressure mid-fill without having to flip a switch. High pressure and 100% duty cycle mean you can service multiple commercial vehicles including tractor-trailers and 18-wheelers with ease.
SPECS:
- CFM: 1.80 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 23-Amps
- Ingress Protection Rating: IP54
- Max Ambient Temp: +158°F
- Min Ambient Temp: -4°F
- Dimensions: 12.4″L x 5.8″W x 7.5″H
- Net Weight: 13.05 lbs.
- Power Cord Length: 8ft.
- Air Hose Length: 30ft.

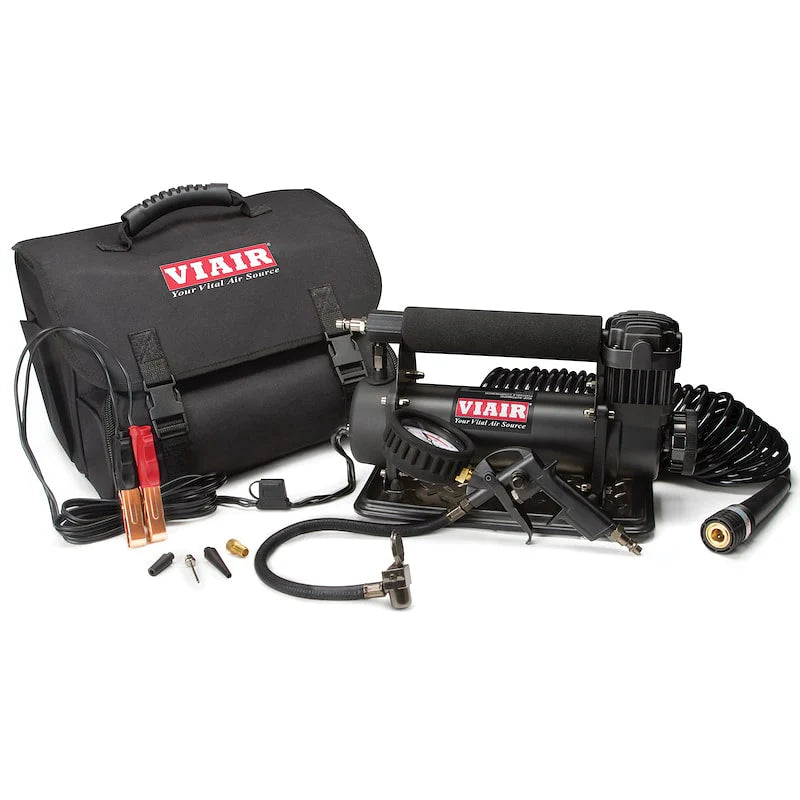

FEATURES:
- Thermal Overload Protector
- Vibration-Resistant Diamond-Plate Sand Tray
- Quick Connect Extension Air Hose with Heat Shield
- Gas Station-Style Tire Inflation Gun with 160 PSI Gauge
- Deluxe Dual Compartment Carry Bag
- 40-Amp Inline Fuse Holder
- Dual Battery Clamps
- 3pc. Inflation Tips Kit
- Presta Valve Adaptor
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 |
20 |
FILL RATES
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 4 min. 05 sec. (±10 sec.) |
| 15 to 30 PSI | 2 min. 10 sec. (±05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 30 sec. (±15 sec.) |
| 15 to 30 PSI | 2 min. 50 sec. (±05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 6 min. 55 sec. (± 15 sec.) |
| 15 to 30 PSI | 3 min. 30 sec. (± 10 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 7 min. 56 sec. (± 15 sec.) |
| 15 to 30 PSI | 4 min. 09 sec. (± 10 sec.) |
